How To: Clean/Change Air Filter on 2009 V-Strom

So you know how to change your bike’s oil, maybe you know how to change your tires, but what about that pesky air filter? Well, it turns out you have to take your V-Strom halfway apart to get to the darn thing. Here’s the process:

1. Take off the little black accent pieces under the side of the fuel tank. The front screw needs a size X Allen wrench to take off, the back two attachments just pop out.



2. Take off the little piece of cowling at the front of the fuel tank. It’s pretty easy: use the Allen wrench you have in your hand from step 1, or use the point of a Phillips screwdriver, to punch the center pin of the two attachment tabs out. Don’t lose the center pin, though - you will need to put it back in when you reassemble later!

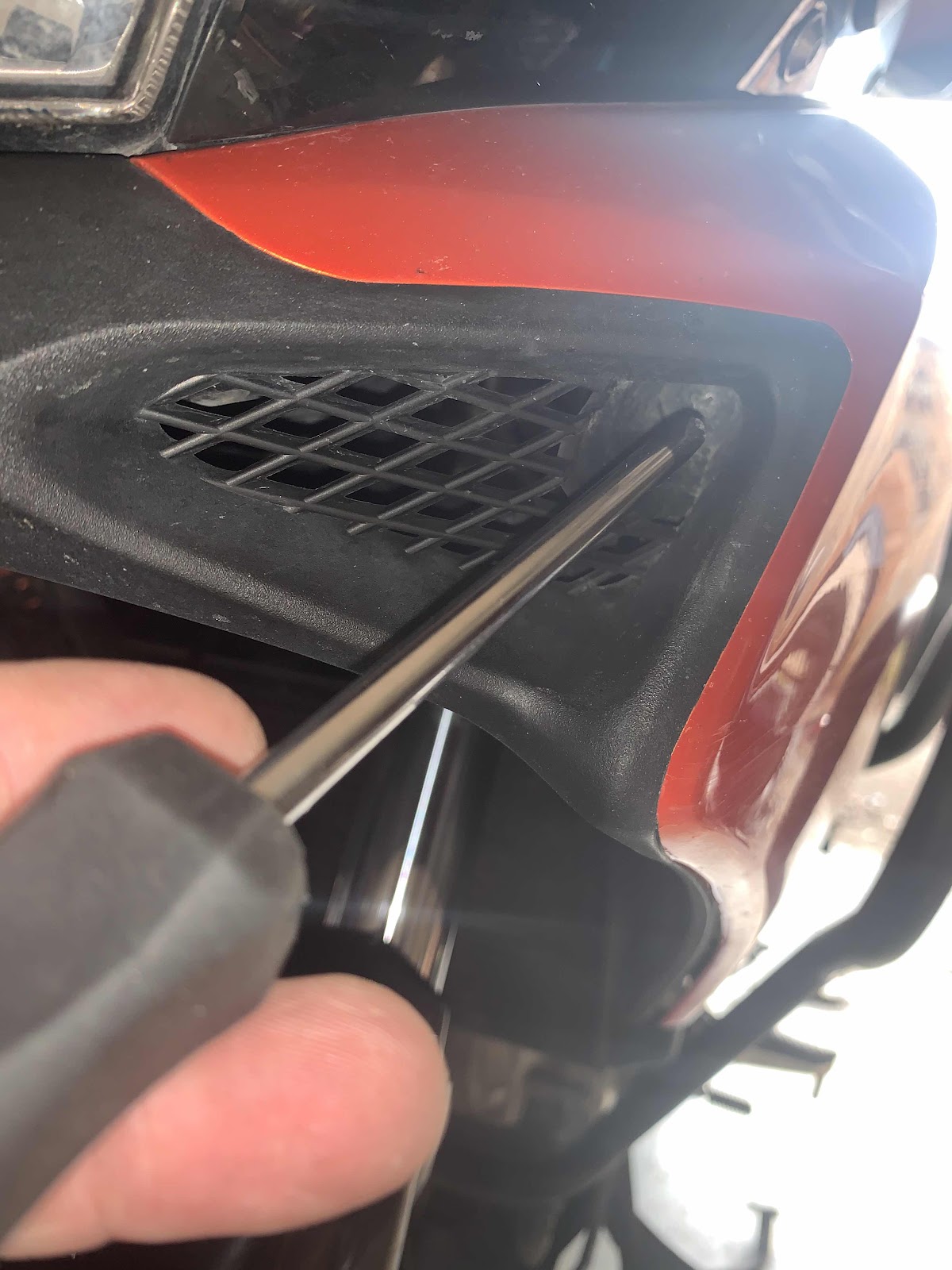

3. Remove the front, bottom cowling piece - the one with the two little air intakes that don’t actually go anywhere. There are seven more of those little center-pin connectors on the bottom of the panel and then your first two Phillips screws are recessed back into the air intake areas.




4. Remove each side cowling piece by taking off six more screws on each side: one Phillips, five more size X Allen bolts.
